>> Current location： Home - Product

Product strengths

- Constant current

- 50,000hrs life expectancy

- Active PFC

- Low THD

- 100% aging

- OVP/ Short protection

- RoHS compliant

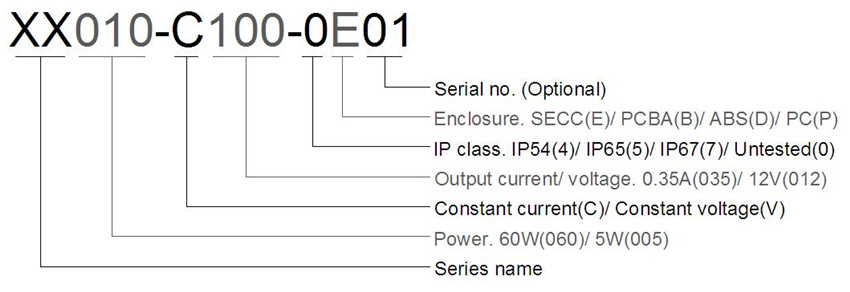

Product naming

Model	Input voltage	Output current	Output voltage	Output power
SG008-C035-0D01	200-240V	0.35A	17-24V	5.95-8.4W
SG008-C035-0D02	200-240V	0.35A	17-24V	5.95-8.4W
SG006-C037-0D01	200-240V	0.37A	13-16V	4.81-5.92W
SG006-C037-0D02	200-240V	0.37A	13-16V	4.81-5.92W

THD

- Low THD design. Particularly for project of large quantity.

- THD curve of SG-006-037-0D01.

Product structure

- Work with a motion sensor

- Double insulated input and output cords

- Screw holes available. Easy installation.
