Product strengths

- Universal input

- Constant current

- 40,000hrs life expectancy

- Active PFC

- 100% aging

- RoHS compliant

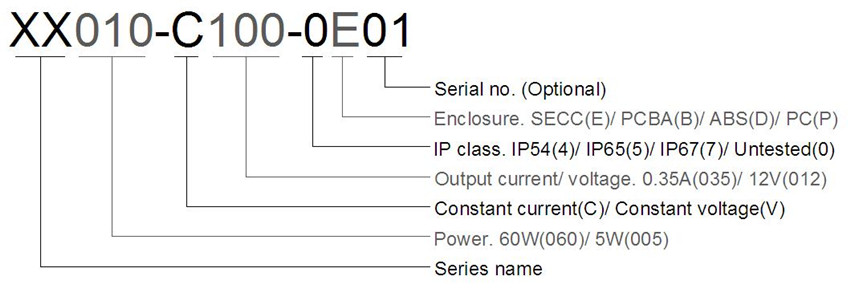

Product naming

Model	Input voltage	Output current	Output voltage	Output power
BT012-C020-0B	100-240V	0.2A	54-60V	10.8-12W
BT014-C023-0B	100-240V	0.23A	54-60V	12.42-13.8W
BT016-C027-0B	100-240V	0.27A	54-60V	14.58-16.2W
BT012-C019-0B	100-240V	0.185A	58-64V	10.73-11.84W
BT026-C017-0B	100-240V	0.165A	144-156V	23.76-25.74W
BT015-C019-0B	100-254V	0.185A	70-80V	12.95-14.8W
BT007-C009-0B	100-254V	0.093A	70-80V	6.51-7.44W

Other characteristics

- Efficiency curve of BT007-C012-0B

Product structure

- Non insulated design. Low cost.

- Slim design which fits inside LED tube or connector.
