Product strengths

- Metal case

- Universal input

- Constant current

- 50,000hrs life expectancy

- Active PFC

- PWM dimming (Polarity-free)

- 100% aging

- OVP/ Short protection

- RoHS compliant

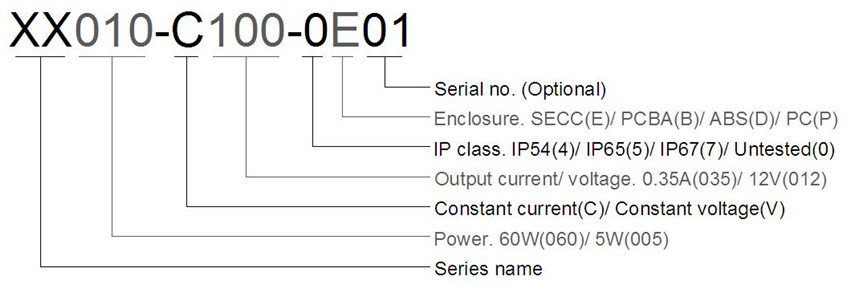

Product naming

Model	Input voltage	Output current	Output voltage	Output power
EM016-C050-0E	100-242V	0.5A	21-31V	10.5-15.5W
EM014-C350-0E	100-242V	0.35A	28-40V	9.8-14W
EM013-C050-0E	100-242V	0.5A	16-26V	8-13W
EM018-C070-0E	100-242V	0.7A	16-26V	11.2-18.2W
EM026-C100-0E	100-242V	1A	16-26V	16-26W
EM014-C035-0E02	100-242V	0.35A	24-40V	8.4-14W
EM020-C050-0E	100-242V	0.5A	24-40V	12-20W
EM028-C070-0E	100-242V	0.7A	24-40V	16.8-28W

Dimming characteristics

- Precisely designed dimming curve. Output can be turned off by a dimmer..

- Hysteresis mechanism to prevent unstable output.

- Reference dimmer (Panasonic NQ20356)

Product structure

- SECC enclosure

- Step casing design. Effective separation of heat generated from LED lamp.

- WAGO/ Panasonic input terminal block. Easy parallel connection.

- WAGO dimming connectors. Easy parallel connection.

- JST output connectors. Safe and reliable.
