Product strengths

- Metal case

- Universal input

- Constant current

- 50,000hrs life expectancy

- Active PFC

- PWM dimming (Polarity-free)

- 100% aging

- OVP/over temperature protection/Short protection

- RoHS compliant

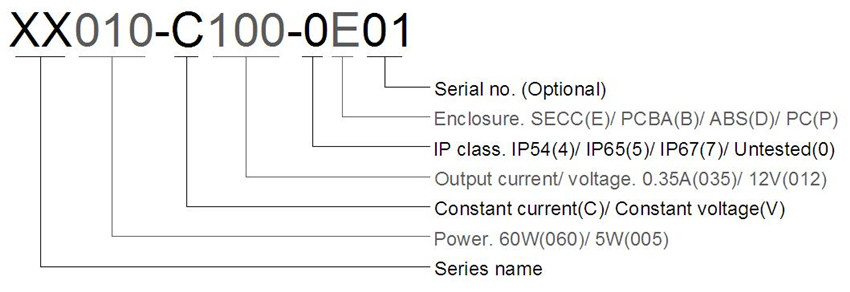

Product naming

Model	Input voltage	Output current	Output voltage	Output power
EL035-C070-0E	100-242V	0.7A	27-50V	18.9-35W
EL050-C100-0E	100-242V	1A	27-50V	27-50W
EL060-C120-0E	100-242V	1.2A	27-50V	32.4-60W
EL042-C070-0E	100-242V	0.7A	32-60V	22.4-42W
EL060-C100-0E	100-242V	1A	32-60V	32-60W
EL043-C050-0E	100-242V	0.5A	51-85V	25.5-42.5W
EL060-C070-0E	100-242V	0.7A	51-85V	35.7-59.5W

Dimming characteristics

- Precisely designed dimming curve. Output can be turned off by a dimmer.

- Reference dimmer (Panasonic NQ20356)

Product structure

- SECC enclosure

- Step casing design. Effective separation of heat generated from LED lamp.

- WAGO/ Panasonic input terminal block. Easy parallel connection.

- WAGO dimming connectors. Easy parallel connection.

- JST output connectors. Safe and reliable.
