Product strengths

- Plastic case

- Universal input

- Constant current

- 50,000hrs life expectancy

- Active PFC

- PWM dimming

- 100% aging

- OVP/ Short protection

- RoHS compliant

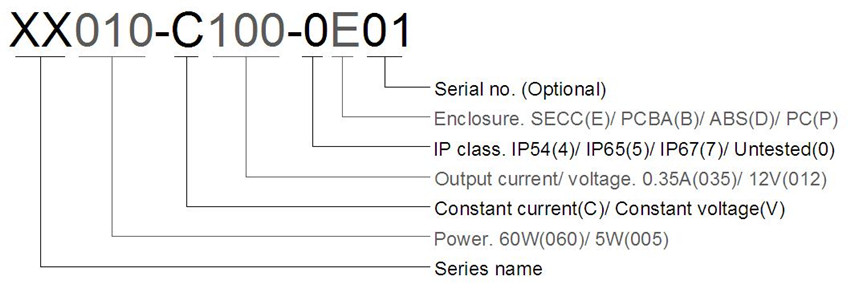

Product naming

Model	Input voltage	Output current	Output voltage	Output power
LP013-C050-0P	100-242V	0.5A	16-26V	8-13W
LP018-C070-0P	100-242V	0.7A	16-26V	11.2-18.2W
LP026C100-0P	100-242V	1A	16-26V	16-26W
LP014-C035-0P	100-242V	0.35A	28-40V	9.8-14W
LP020-C050-0P	100-242V	0.5A	28-40V	14-20W
LP028-C070-0P	100-242V	0.7A	28-40V	19.6-28W

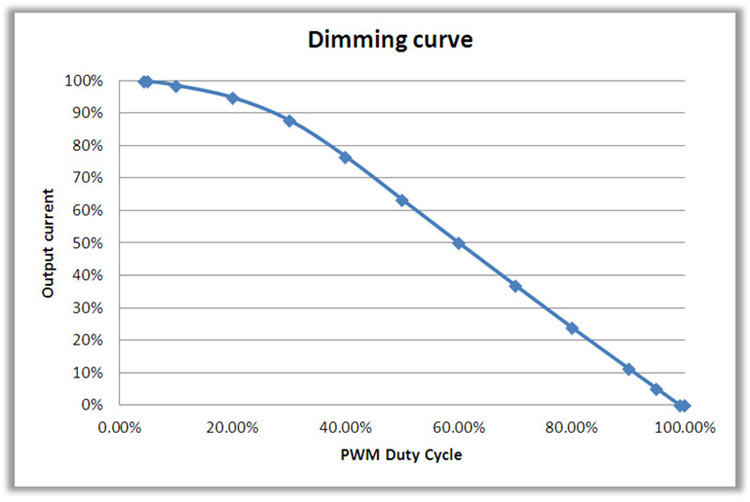

Dimming characteristics

- Precisely designed dimming curve.

- Reference dimmer (Panasonic NQ20356)

Product structure

- PC enclosure

- Slim casing which suite most of the lighting fixtures.

- IP54 compatible (optional).

- Double insulated wires for input and output.

- Screw holes available. Easy installation.
