Product strengths

- Plastic case

- Universal input

- Constant current/ constant voltage

- 50,000hrs life expectancy

- Active PFC

- 100% aging

- OVP/OCP/ Short protection

- RoHS compliant

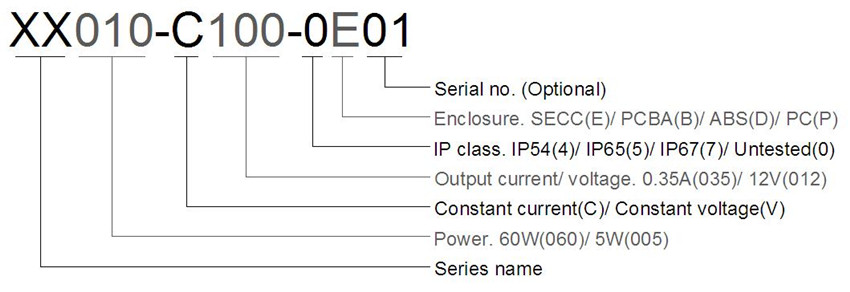

Product naming

Model	Input voltage	Output current	Output voltage	Output power
LS012-C100-0P	100-242V	1A	5-12V	5-12W
LS014-C070-0P	100-242V	0.7A	5-20V	3.5-14W
LS013-C050-0P	100-242V	0.5A	5-26V	2.5-13W
LS013-C035-0P	100-242V	0.35A	5-36V	1.75-12.6W
LS012-V012-0P	100-242V	1A	12V	12W
LS014-V024-0P	100-242V	0.6A	24V	14.4W

Output characteristics

- DC-DC output module. Wide output voltage range. Flexible application.

- Typical output V-I of LS013-C035-0P

Product structure

- PC casing

- Compact design which suits most lighting fixture.

- IP54 (Optional)

- Screw holes available. Easy installation.
