Product strengths

- Plastic case

- Universal input

- Constant current

- 40,000hrs life expectancy

- Active PFC

- 100% aging

- OVP/ Short protection/ OTP

- RoHS compliant

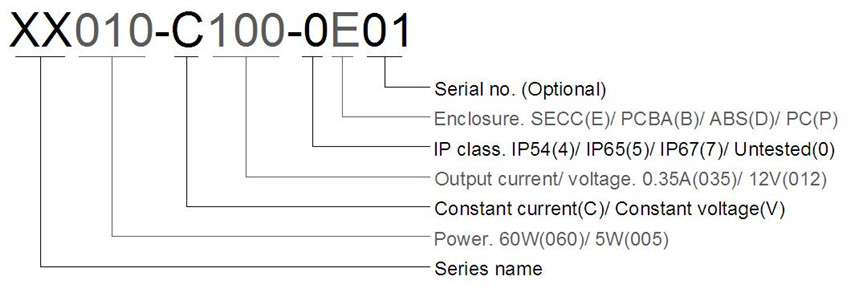

Product naming

Model	Input voltage	Output current	Output voltage	Output power
TN042-C070-0P	100-240V	0.7A	35-60V	24.5-42W
TN052-C087-0P	100-240V	0.87A	35-60V	30.45-52.2W
TN055-C100-0P	100-240V	1A	30-55V	30-55W

Other Characteristics

- 2-stage design. High PF and low ripple

- Typical PF curve

- Typical ripple curve

Product structure

- PC enclosure

- Slim structure which suits most lighting fixtures.

- Screw holes available. Easy installation.
